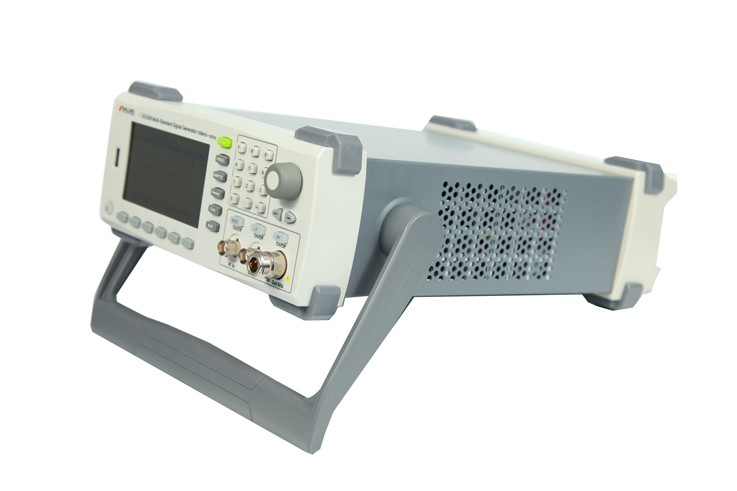

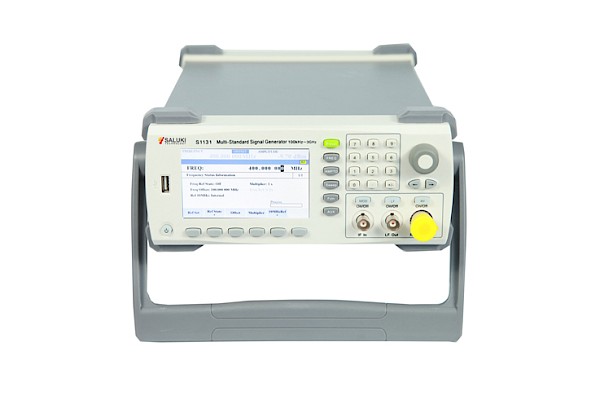

S1131 RF Signal Generator
SKU: ST00020
S1131 RF Signal Generator
Description

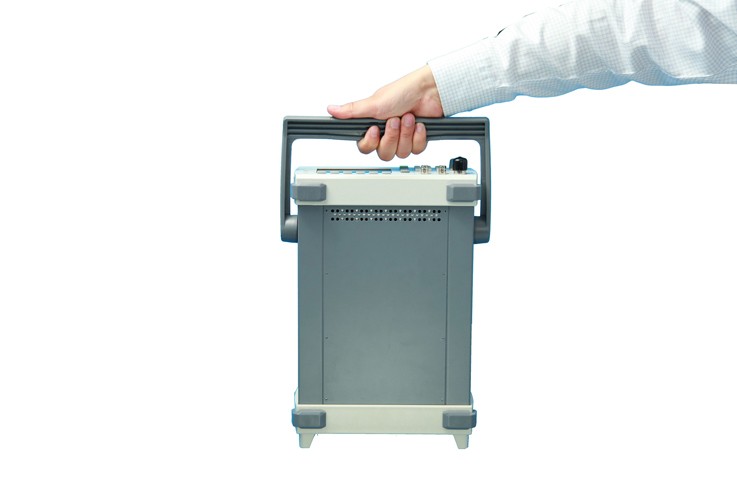

S1131 RF signal generator provides engineers with a “Smaller, lighter and easier” solution for 3GHz signal-generation applications. While it is an entry level instrument, the S1131 provides most commonly used functions an engineer needs such as CW signal generation, AM/FM/PM/Pulse modulation, digital modulation (ASK, FSK, PSK), Up-converting, LF output etc. S1131 also provides flexible interfaces and support SCPI for easy remote control. S1131 is perfect suitable for education, RF component manufacture and maintenance.Key Features
- Frequency range from 9 kHz to 3 GHz
- Typical output power from -120dBm to +10dBm
- Multi sweep mode, Step sweep, list sweep, frequency sweep and power sweep
- Standard low frequency output function, sine, square, triangle and saw tooth wave forms are supported
- Standard analog modulation functions, AM, FM, PM and Pulse modulation, minimum pulse width is 100ns
- Standard digital modulation functions, ASK, 2/4/8FSK, 2/4/8PSK supported
- Support linear frequency modulation, can simulate radar signals

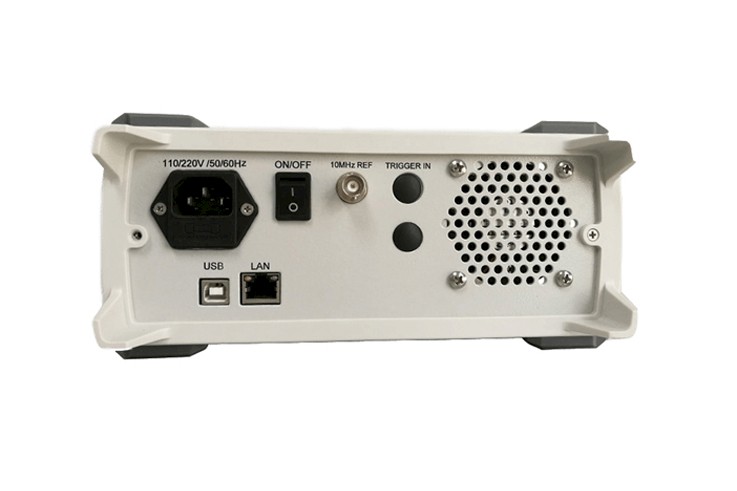

- Standard IF input output, USB/LAN remote control interface, SCPI supported
