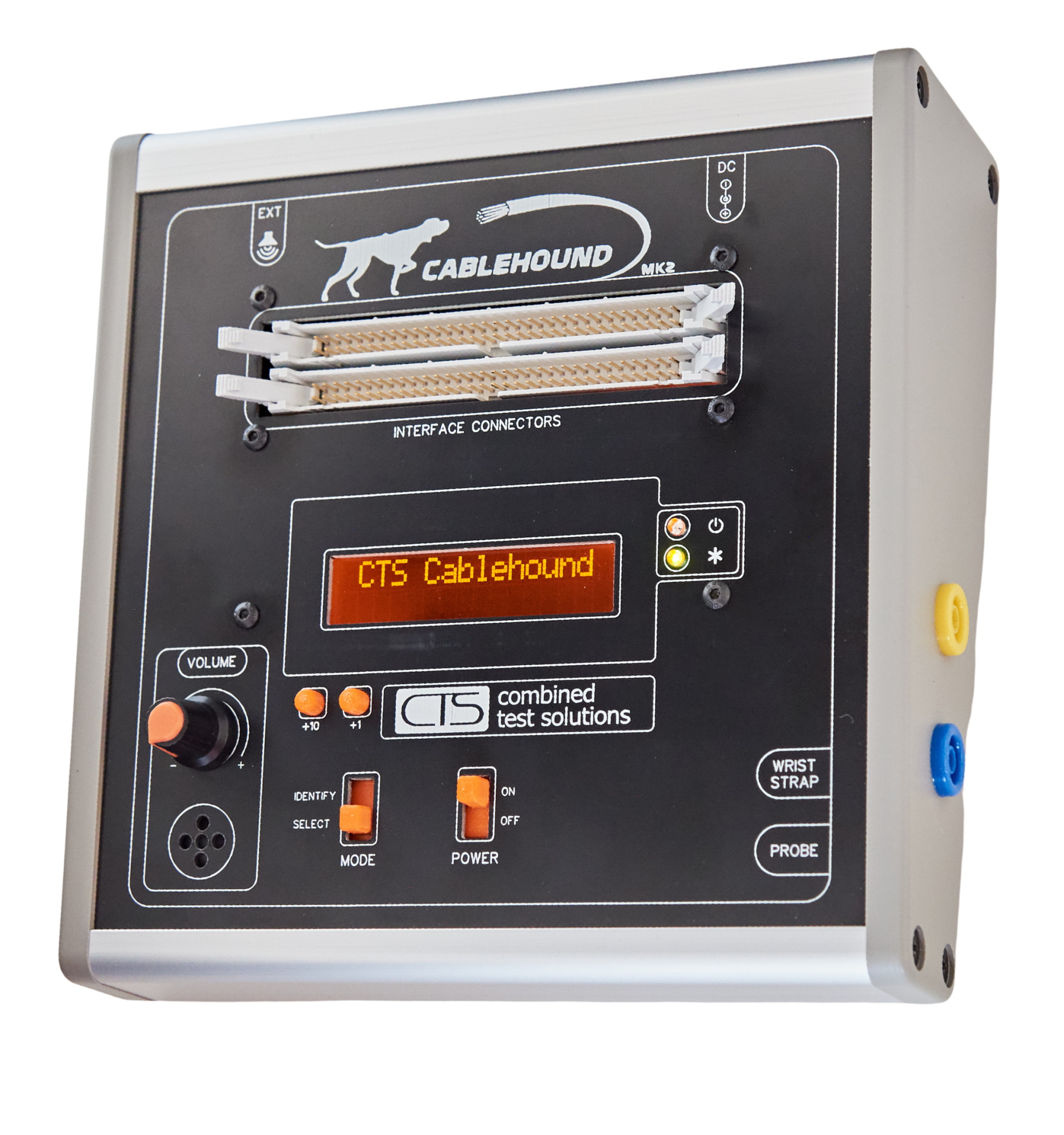

Cable Hound MK II Cable Harness Wiring Aid

Description

CTS Cable Hound *Special Starter Kit* Including CTS Cable Hound MK II, Ribbon cable, Transition board & Peli-case: £999.00

This exciting new cable harness wiring aid has been designed and manufactured to exacting standards by Combined Test Solutions Ltd in the UK.  Its primary aim is to enable low-cost, fast and easy, guided build of small cable assemblies, enabling 100% correct wiring at the point of the build.

The Cable Hound MK II cable harness wiring aid is simple, low cost and very effective and has been designed with input from several major global companies involved in MIL Aerospace connector wiring and cabling as well as drawing on over thirty years of experience in our company history.

Two modes of use are available, one is “Select” where an operator chooses a wire number (from 1 to 128) and the device bleeps when the selected wire is probed.  The other mode is “Identify” where the operator touches any wire and is then guided, audibly and visually, via the LCD, to correctly place the wire probe.

It can run for many days on an internal, replaceable 9v PP9 battery, or it can be powered by an external, wall plug power supply with a 12v output.

The unit has been rigorously tested and is CE-marked.  It has been designed to be resilient.  External interference, such as the 7000v “ESD shock test” to any external connections, (all 128 wiring outputs for example), is easily overcome by the array of 30kv protection diodes. Running under 9v DC or 12v DC power means that the unit is operating well below the 48v DC maximum specified in the Low Voltage Directive.

All enquiries to sales@ctstest.co.uk
